| Article number: | GK-VWT5-G2-1K |
available options:
- grille integration kit with LED Triple R 750 high performance and position light
- grille integration kit with LED Triple R 750 ELITE (wth E-Boost)
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

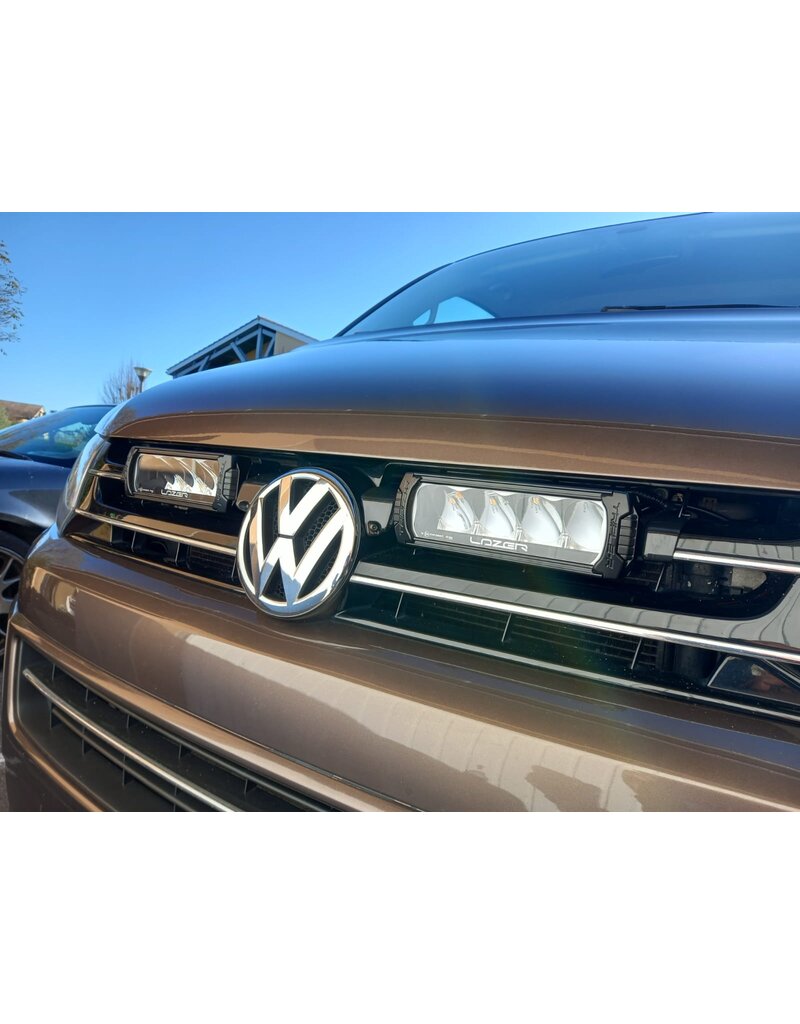

The VW T5 (2010+), designed for 2014 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
With lighting performance borne out of development and testing work done at the highest levels of professional motorsport, despite the sleek styling and seamless integration, it is at night when the installation really impresses. Complete with Triple-R 750 Std, the kit boasts 8,200 raw lumens, delivering 1 lux to over 600m; lighting performance that needs to be seen to be believed, but still within ECE regulations, meaning the lights can operate with your standard high beam driving lights.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
What's included:
- x2 Triple-R 750 High Performance LED Spotlights
- x1 Mounting Kit (comprising 4x Brackets and fasteners)
- x1 Cutting Guide (comprising 4x Brackets)
- x1 Two-Lamp Wiring Kit
- x1 Installation instructions
MADE IN THE UK
Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 1 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 4620 Lm |
| Total Driver 'FOV' Flux † | 2786 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 4 |
| Power Consumption | 45 Watts |
| Current Draw (at 14.4V) | 3.1 Amps |
| Start-Up Time * | 100ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 35 |
| Position Light (White) | ECE R7 |
| PHOTOMETRIC DATA | |
| Horiz Beam Angle | 19 Deg |
| 0.25 lx Line | 866 metres |
| 0.5 lx Line | 612 metres |
| 1 lx Line | 433 metres |
| 3 lx Line | 250 metres |
