Article number: | 0S7-ELITE-PL-SM |
Price per light
With the range expanded in 2022, the Sentinel range of round LED driving lights now comprises 7-inch versions available in Standard and Elite grades. The lights deliver remarkable high beam lighting performance, and product styling that exudes quality. At the Standard level, a combination of 12 high power LEDs emit 5,208 raw lumens, while at the Elite level 10,248 raw lumens are served up by 24 high power LEDs, with each product having the light output on the road or track ahead maximised through the adoption of class-leading electronics and optical design, alongside the product’s CAE-optimised lamp housing.
Boasting a true ‘combo’ beam pattern, the central rows of LEDs and optics deliver the long-range illumination, while the upper and lower sections have been meticulously designed and engineered to produce an enviable 65 degrees wide spread of light (Elite grade). The result, a perfectly balanced distribution of light, at a carefully selected 5000 kelvin colour temperature, to make night driving a safer and more enjoyable experience. Considering the lamps size and power rating (60W - Standard / 116W – Elite), these lamps outperform on every level, even against significantly larger, more powerful products.
Symbolic of the lighting power on show, operating at 100% the lamps exceed UNECE high beam driving light regulations, so both Standard and Elite lights adopt Lazer’s dual output E-Boost technology whereby removing the supplied Boost Cap from the back of the lamp reduces the light output to be within the Regulation 149 limit, permitting use of the lights alongside the standard high beam driving lights on your vehicle.

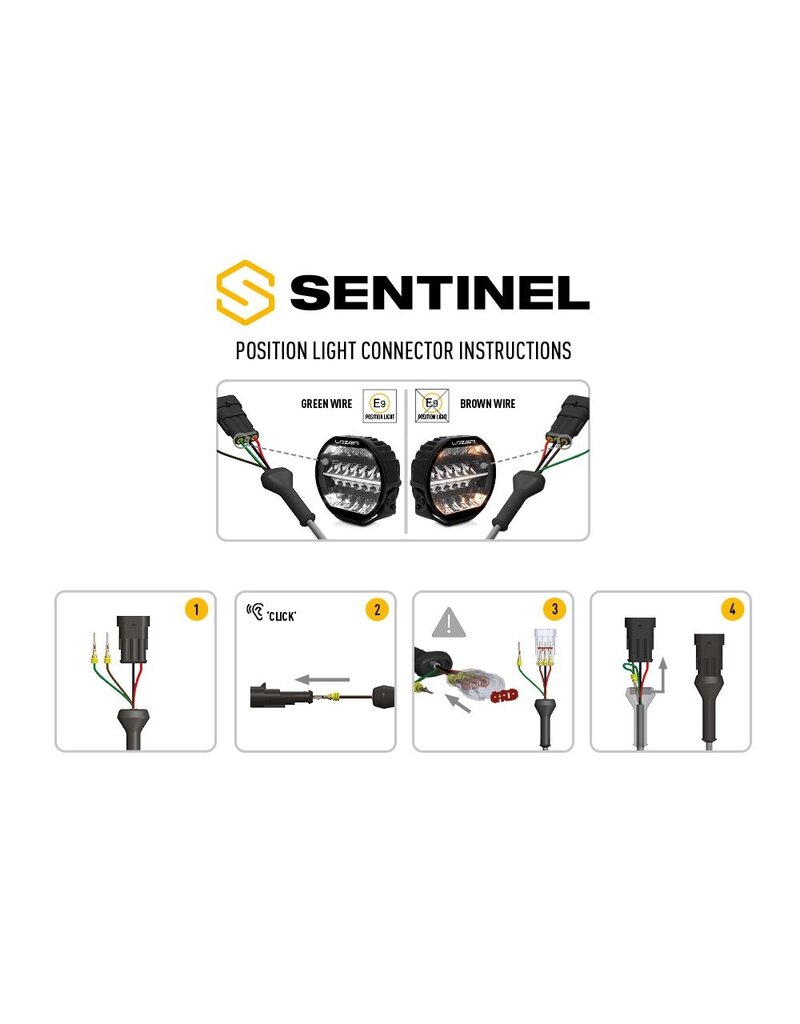

The stealth design of the Sentinel 7” lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. Furthermore, the Elite version has the option to connect white or amber position/side light function, for an even more distinct look, with the white version approved to UNECE Regulation 148. The lamps are supplied with a ‘slim’ diecast aluminium mounting bracket, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black, for a product protected against aesthetic deterioration or corrosion.
As with all Lazer products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.
What's included:
Attention: if your vehicle has LED or XENON spotlights as main headlights, you will need the LAZER CAN interface (available separately)
Based on: 1x Sentinel 7'' Elite LED Lamp.
E-Boost | E-Mark Mode | |
Voltage Range (DC) | 10-32V | 10-32V |
LED Life | 50,000 hrs | 50,000 hrs |
Weight | 1.5 kg | 1.5 kg |
HIGH BEAM FUNCTION | ||
Total Luminous Flux |
10248 Lm |
2049 Lm |
Total Driver 'FOV' Flux † | 6380 Lm | 1276 Lm |
Colour Temperature | 5000k | 5000k |
Number of High Output LEDs | 24 | 24 |
Power Consumption | 110 Watts | 22 Watts |
Current Draw (at 14.4V) | 7.6 Amps | 1.5 Amps |
CERTIFICATION | ||
High Beam | N/A | ECE R149 |
E-Mark Ref | N/A | 12.5 |

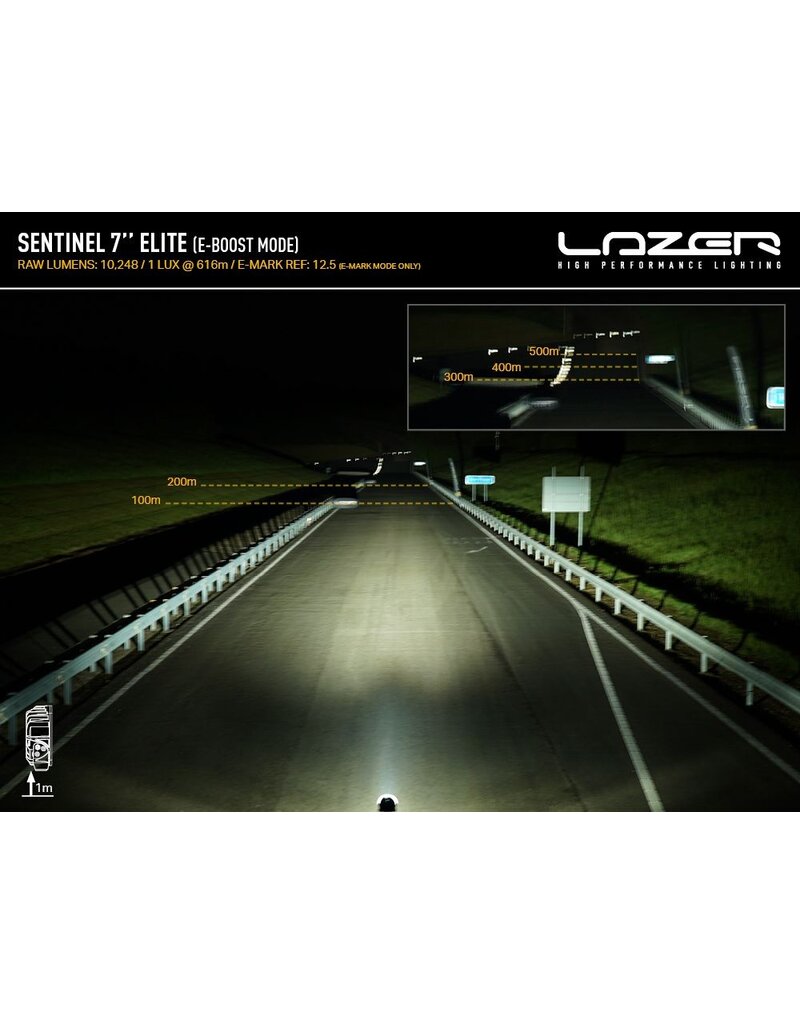

PHOTOMETRIC DATA | ||
Horiz Beam Angle | 65 Deg | 65 Deg |
0.25 lx Line | 1233 metres | 551 metres |
0.5 lx Line | 872 metres | 390 metres |
1 lx Line | 616 metres | 276 metres |
3 lx Line | 356 metres | 159 metres |
