Extra Heavy Duty (+750kg) pair of additional springs for the rear axle for Fiat Ducato, Citroen Jumper, Peugeot Boxer type 250/290 from 07/2006 and facelift from 05/2014

Article number:

ZCFFD-XHD

Extra Heavy Duty (+750kg) pair of additional springs for the rear axle for Fiat Ducato, Citroen Jumper, Peugeot Boxer type 250/290 from 07/2006 and facelift from 05/2014

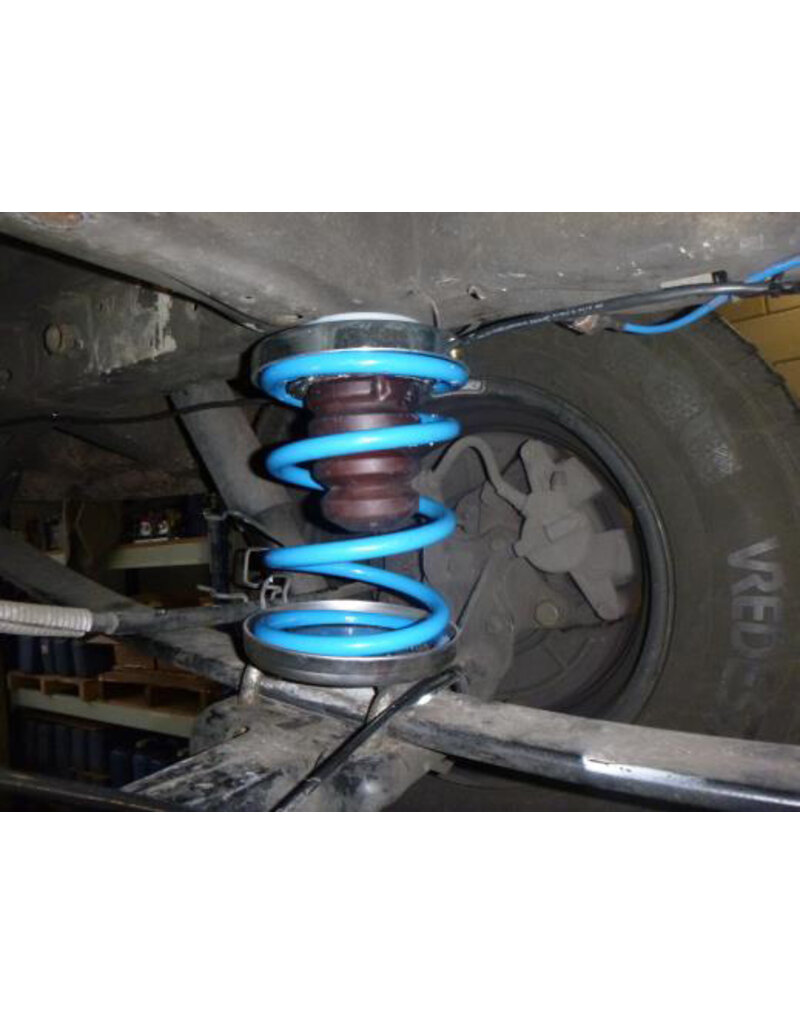

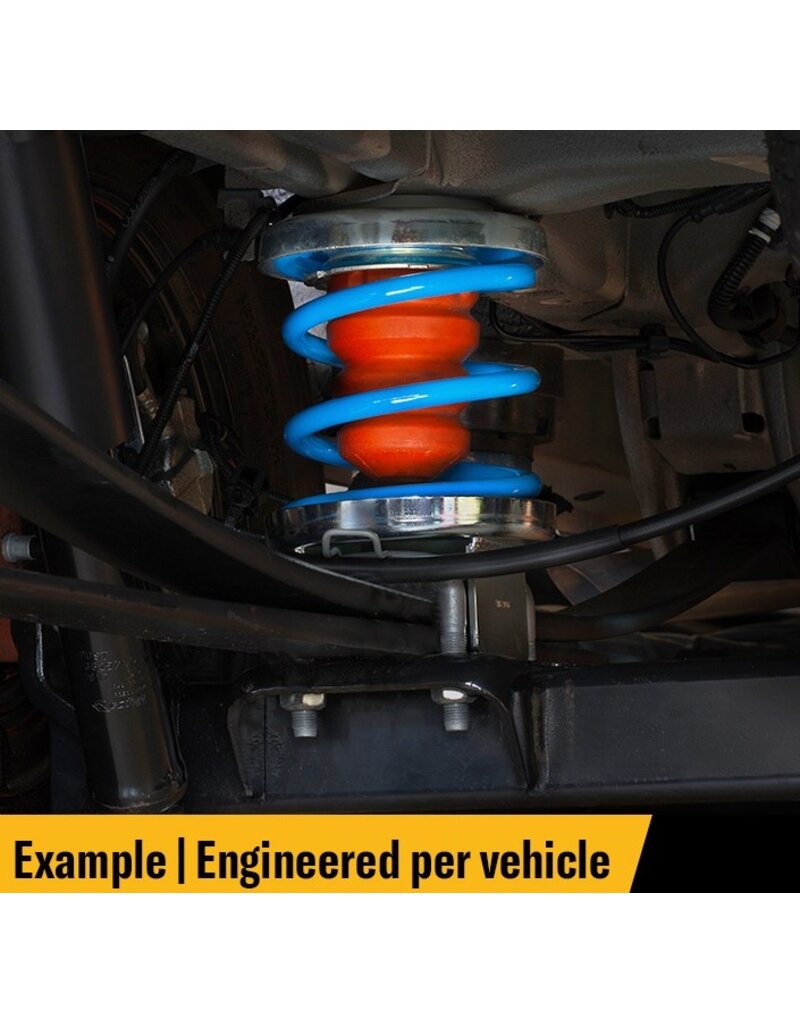

Additional springs for the leaf springs on the rear axle for Fiat Ducato, Citroën Jumper or Peugeot Boxer, model X250/290 from 2006 onwards to reinforce the standard leaf spring. The additional springs are installed between the frame and axle.

Unfortunately, many camper vans or even fully loaded artisan vans suffer from the high weight of the body, and ride comfort suffers. The result: risk of skidding and swaying in bends, crosswinds and overtaking maneuvers. Bumps, unevenness and potholes are transmitted more strongly than usual. With these additional springs, the vehicle regains the suspension travel to the rear axle that it needs for a safe and comfortable ride

The springs optimally supply the standard suspension with additional spring force, the vehicle has more driving stability, more comfort and safety is significantly improved. The springs can be installed by any workshop with little effort.

Depending on the weight distribution, the rear of the vehicle is raised by up to 40 mm.

Special features:



• for single and double leaf springs
• Only for vehicles with ABS and unladen axle loads from 1,500 kg
• also for E-Ducato (electric and hybrid)
• the minimum load is 750 kg
• not for AL-KO rear axle, vehicles with level control, standard air suspension and load-dependent brake pressure regulator on axle 2



Scope of delivery:

• 1 set = 2 coil springs for the rear axle
• installation material
• installation instructions
• ABE / TÜV certificate (homologation)
